4L INTRACK LED DRIVER-DUAL HEAD

Description

• Constant current /in-track LED driver

• Fixed output current

• For luminaires of protection class ll

• Selectable fixed output current via DlP switch

• For ambient temperatures up to 35 C

• Optional accessory ACU ALU NIPPLE M10*1 for mounting the luminaire head

Features and Benefits

• Compact dimension most coincident with the miniaturization of track luminare

• Have 2 independent output channels

• Can save installation costs Up to 91% efficiency

• Life-time up to 50,000hours

• 5-year guarantee

• Casing:polycarbonate, white (RAL9016), black (RAL9005)

• Type of protection lP20

• Overload protection

• Short-circuit protection

• No-load protection

• Burst protection voltage 1 kV

• Surge protection 1 kV(L to N)

Technical parameter

Product Type Input Voltage Output Power Output Voltage Output Current Ripple Tc Ta Dimension

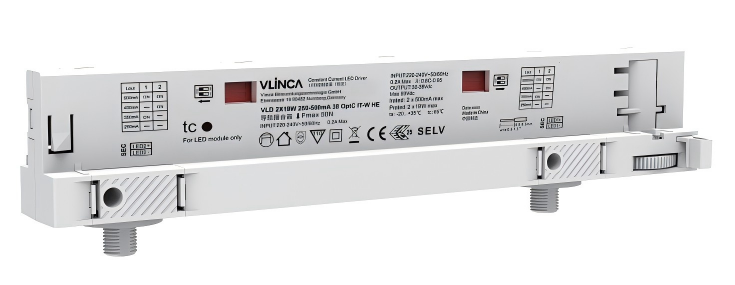

VLD 2X19W 250-500mA 38 OptC IT HE 220-240V 2X19W 30-38V 250/350/400/500mA <5% 65℃ -20...+35℃ 235*30.9*43mm

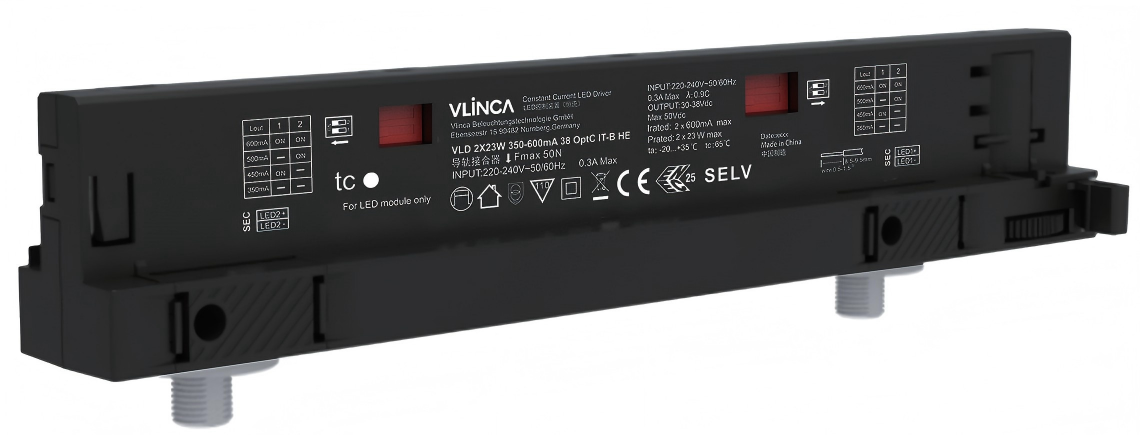

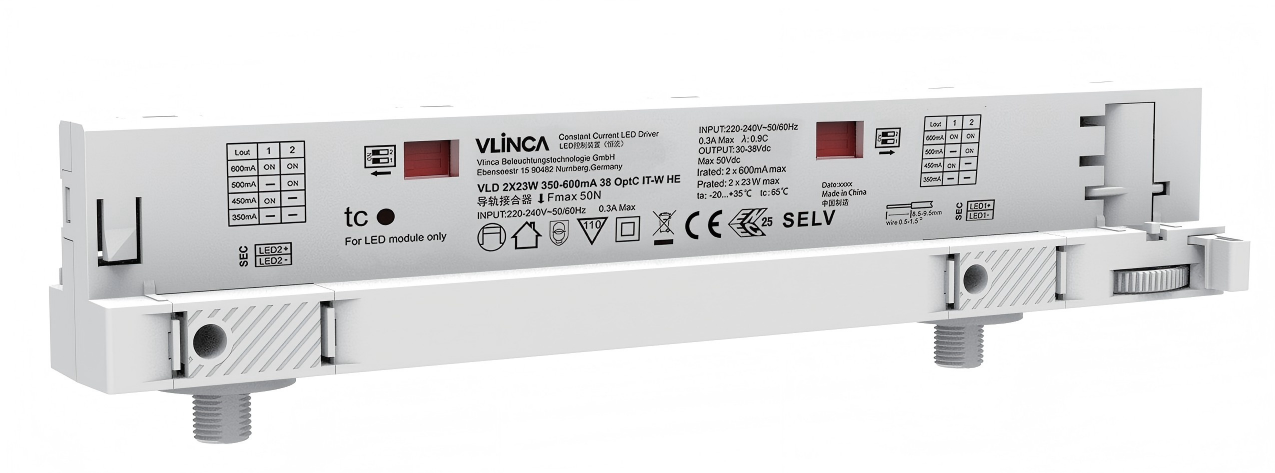

VLD 2X23W 350-600mA 38 OptC IT HE 220-240V 2X23W 30-38V 350/450/500/600mA <5% 65℃ -20...+35℃ 235*30.9*43mm
