VBD-CV5-IDP
Description
Product Description

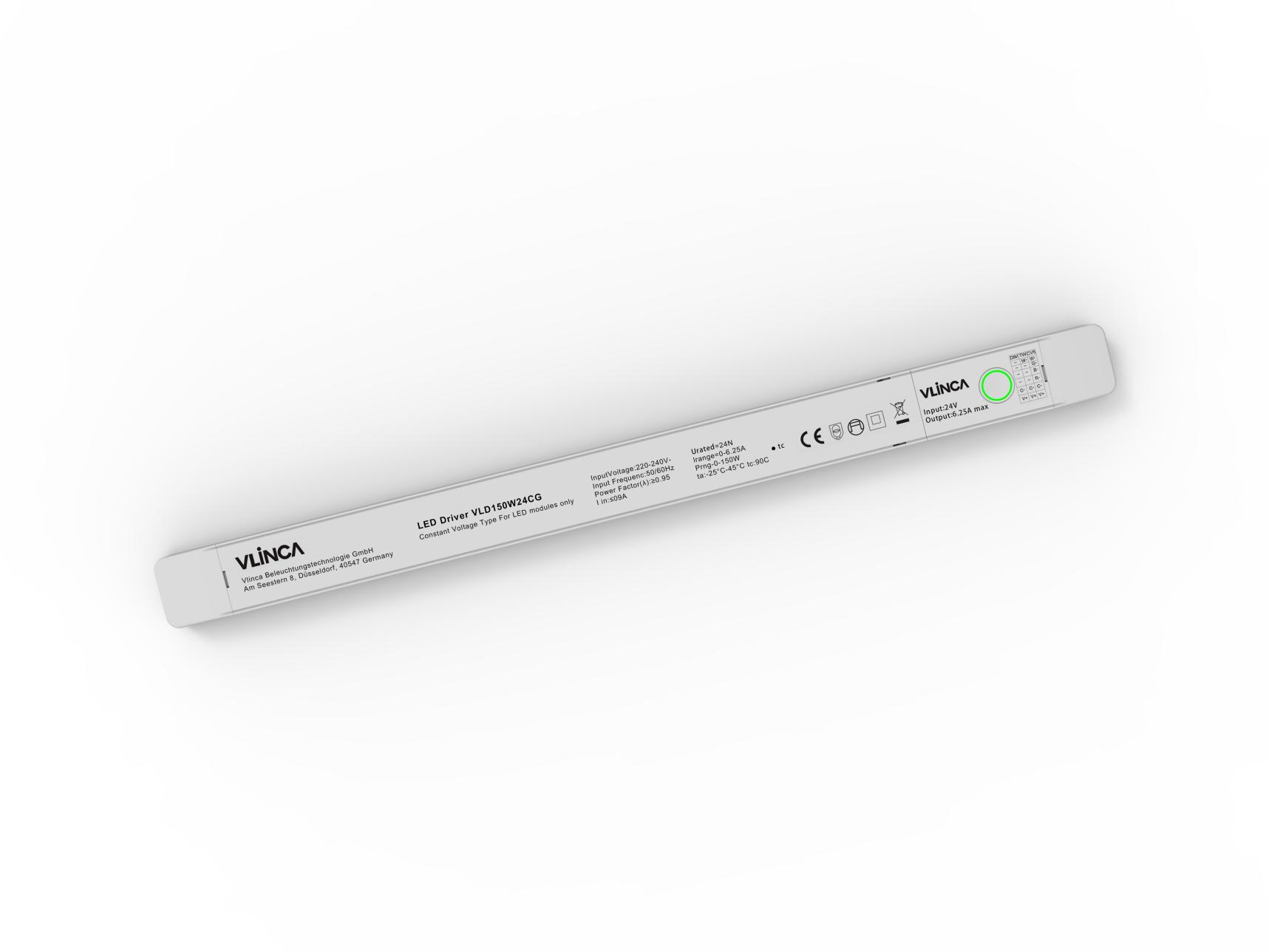

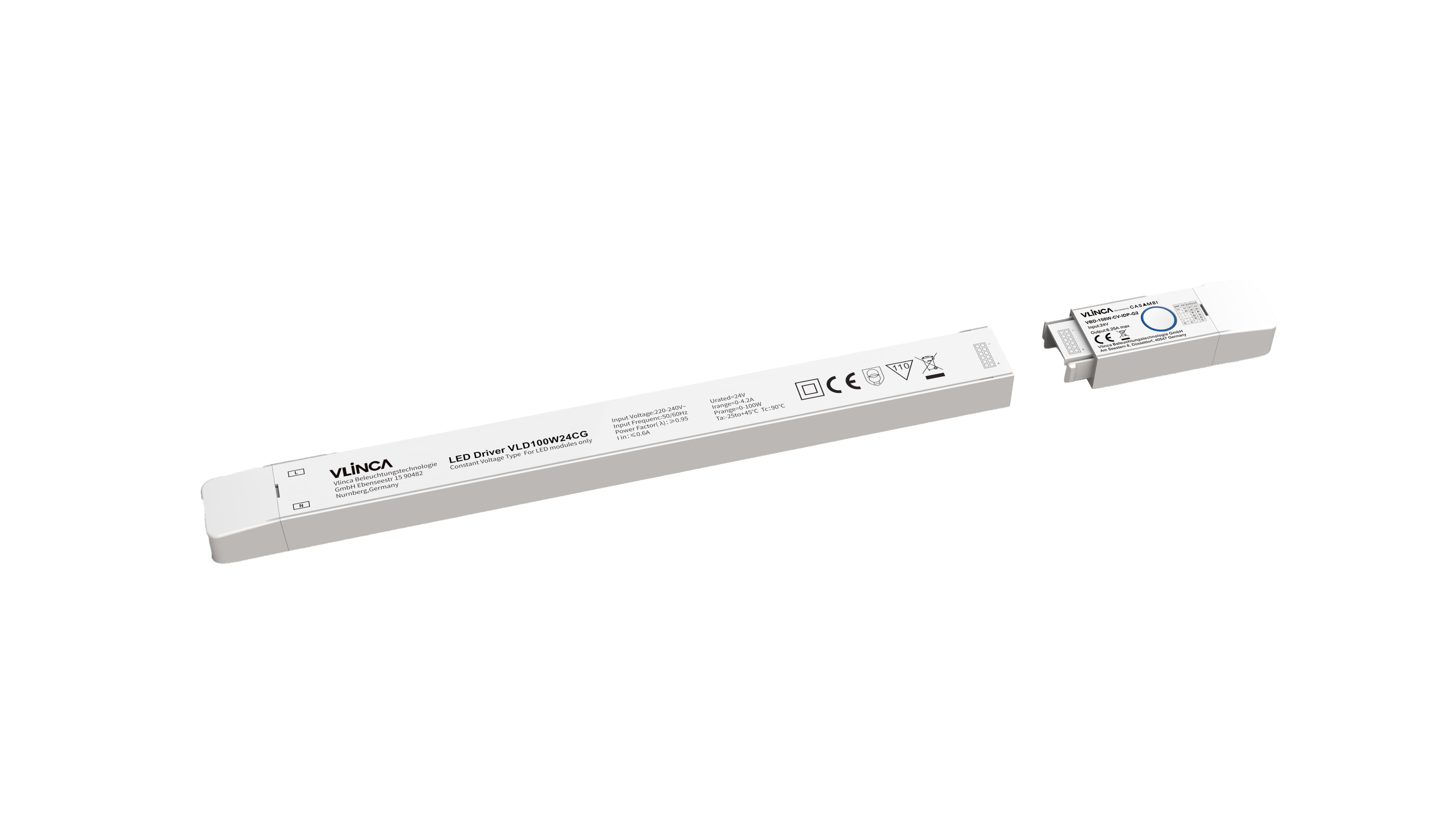

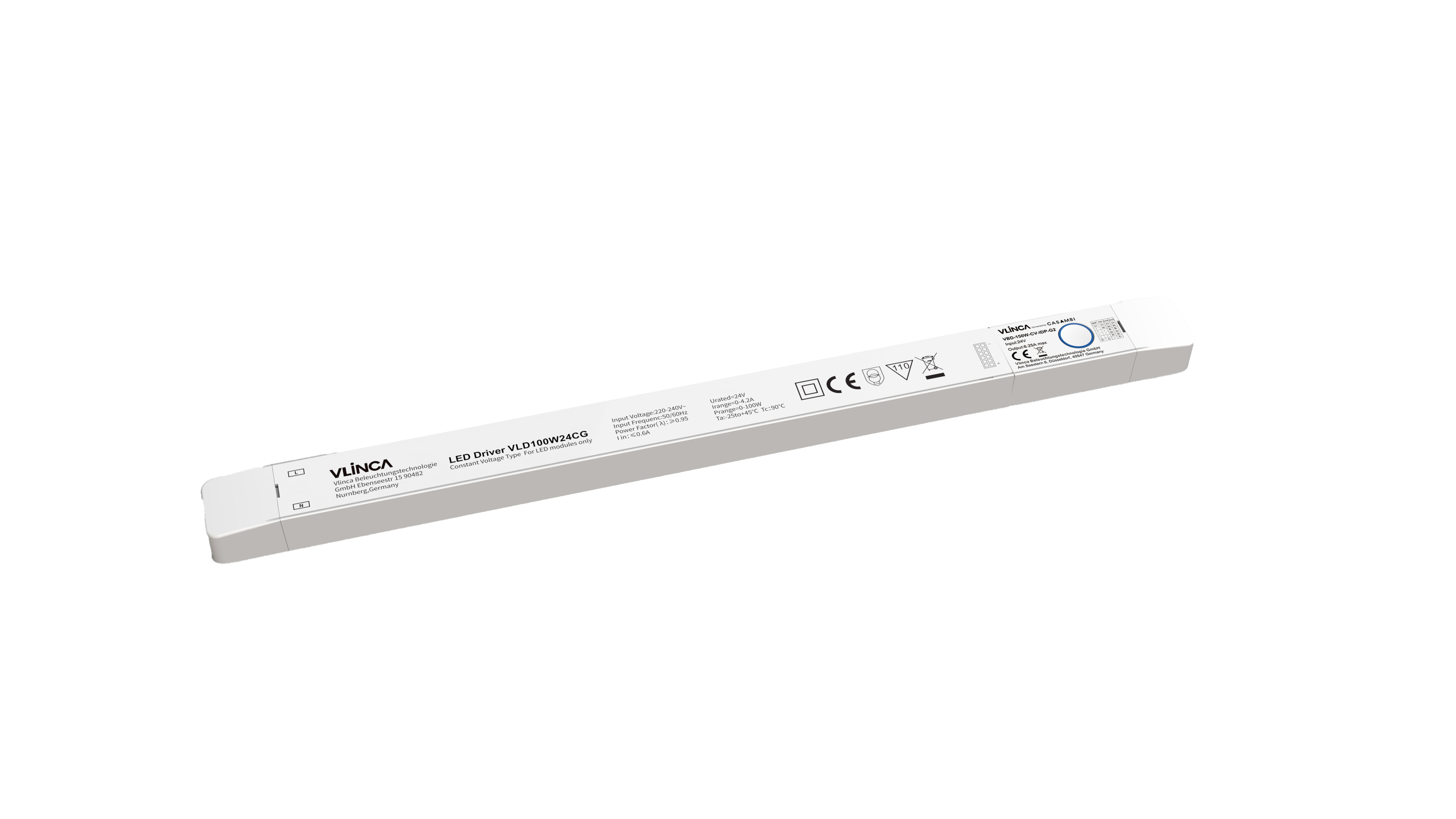

VBD-150W-CV-IDP is composed of a constant voltage driver and a bluetooth controllable,
casambi enabled, five-channel constant voltage controller for constant voltage LED loads,
such as LED strips and constant voltage LED modules. It can be configured with 3 different
fixture profiles for 1,2,5-channel applications(dimming, tunable white, RGBCW).
Features and Benefits
Product Description
• Linear design meet the engineering application well
• 3 functions in 1 model, can save stock for customer
• “Re-set” key for un-pairing
Technical parameter
| 90 °CInput voltage(AC) | Input current | Output voltage(DC) | Output current | Ambient temperature ta | Max. casing temperature tc | Life time | Dimensions (L* W*H) | Degree of protection |
| 220-240V | ≤0.9A | 24V | ≤6.25A | -20°C ... +45 °C | 90 °C | up to 50,000 h | 319mm * 30mm* 18mm | IP20 |
