Product Description
• Intellidex (DAL1-2 part ext. 251,252 and 253)
• Dimmable built-in constant current LED driver

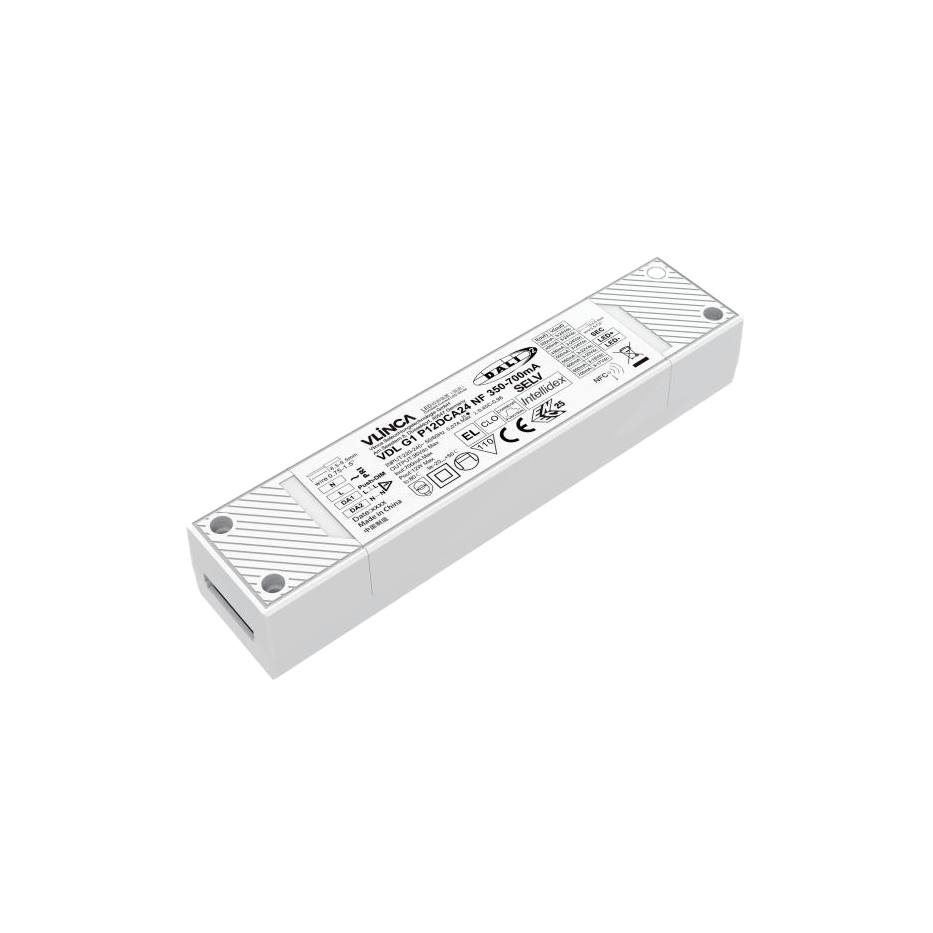

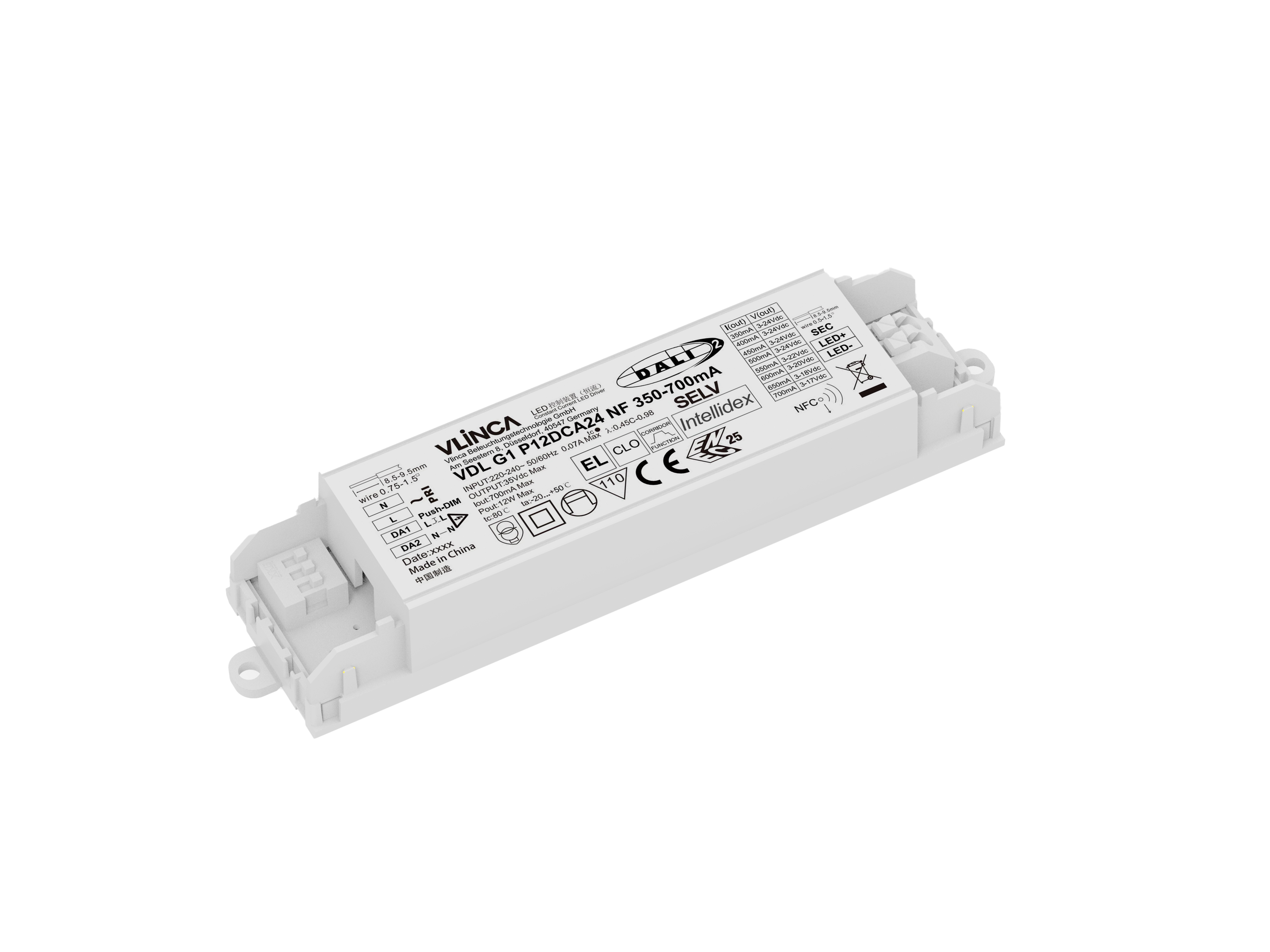

• Can be either used built-in or independent with end cap
• For luminaires of protection class ll
• Dimming range 1 to 100 %

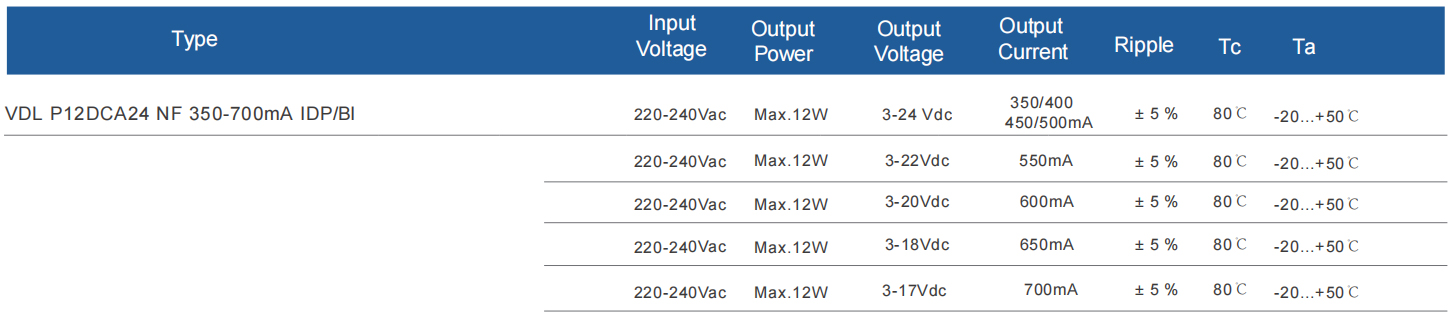

• Output current adjustable between 100-450 mAV350-700mA via NFC
• Max. output power 12 w
• Up to 85 % efficiency
• Power input on stand-by < 0.35 W
• Nominal lifetime up to 100,000 h
• 5-year guarantee
Housing properties
• Casing: polycarbonat, white
• Type of protection lP20
Interfaces
• DALI-2 DT 6, switchDIM, EL, corridorFUNCTION
• Terminal blocks: 45°push terminals
Functions
• Adiustable output current in 1-mA-steps (NFC)
• Constant light output function (eCLO)
• Fulfills DALl-2 parts:105 (DALl firmware update),251 (Luminaire
data),252 (Energy reporting) and 253 (Diagnostics & Maintenance)
Typical applications
• For spot light and downlight in retail,residential and hospitality applications
