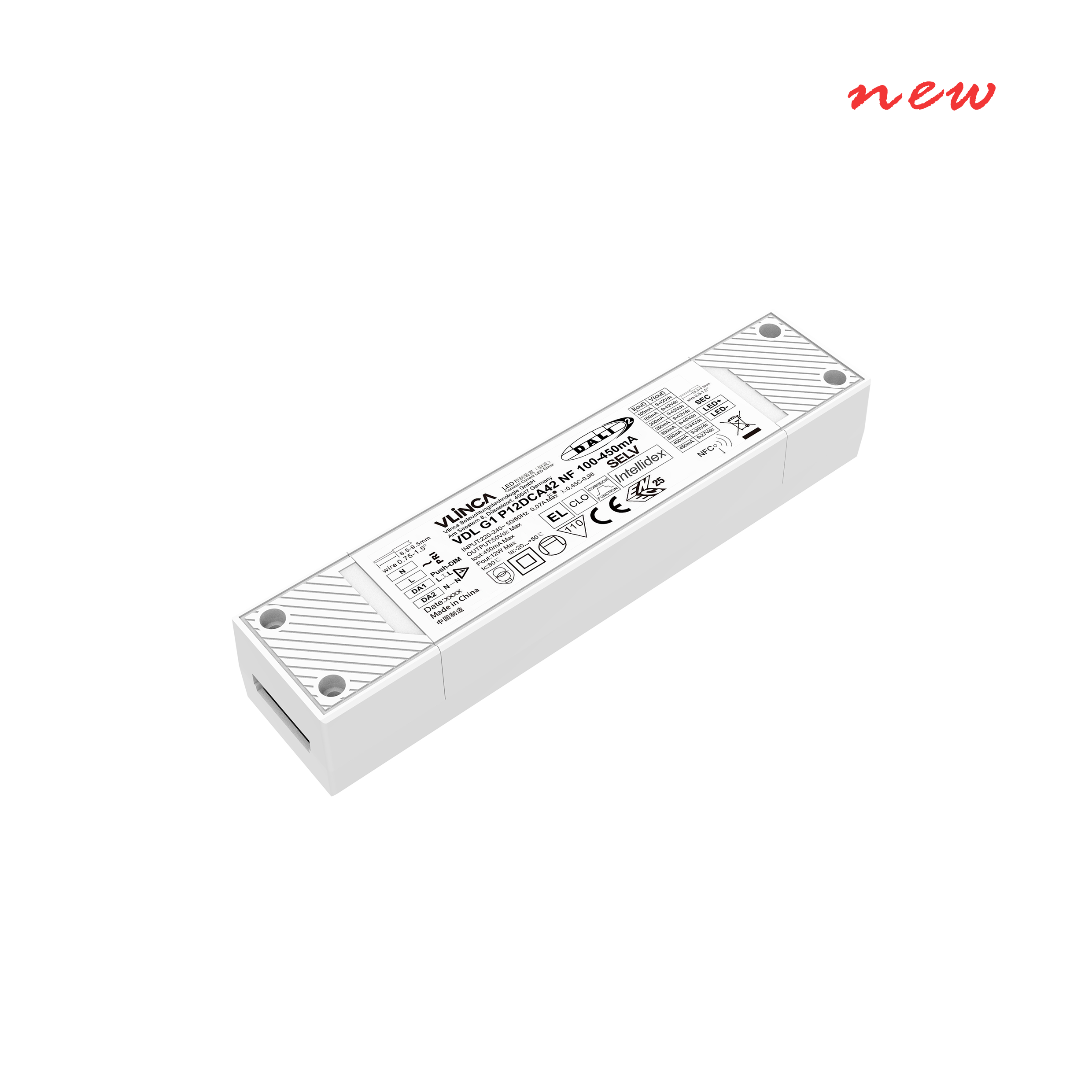

• Intellidex (DALl-2 part ext. 251,252 and 253)
• Dimmable built-in constant current LED driver
• Can be either used built-in or independent with end cap
• For luminaires of protection class ll
• Dimming range 1 to 100 %
• Output current adjustable between 100-450 mA350-700mA via NFC
• Max. output power 12 V
• Up to 85 % efficiency
• Power input on stand-by < 0.35 W
• Nominal lifetime up to 100,000 h
• 5-year guarantee
• Casing: polycarbonat, white
• Type of protection lP20
• DAL1-2 DT 6, switchDIM, EL, corridorFUNCTION
• Terminal blocks:45°push terminals
• Adjustable output current in 1-mA-steps (NFC)
• Constant light output function (eCLO)
• Fulfills DALl-2 parts:105 (DALl firmware update),251 (Luminairedata),252 (Energy reporting) and 253 (Diagnostics & Maintenance)

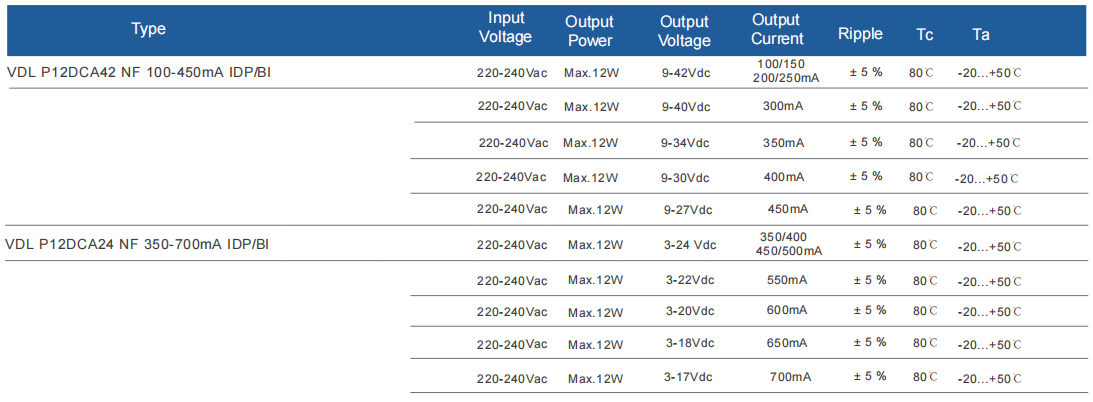

• Input Voltage: 220-240Vac
• Output Voltage: 2.5-24V,9-42V
• Intellidex (DALI-2 part ext. 251, 252 and 253) ，CLO,switchDLM,corridor FUNCTON
• Output Current: 350-700mA,100-450mA
• Output power: 12W
• Effciency: up to 83%
• Dimension:
135X29.5X21mm (IDP)
124.8X29.5X21mm(BL)
