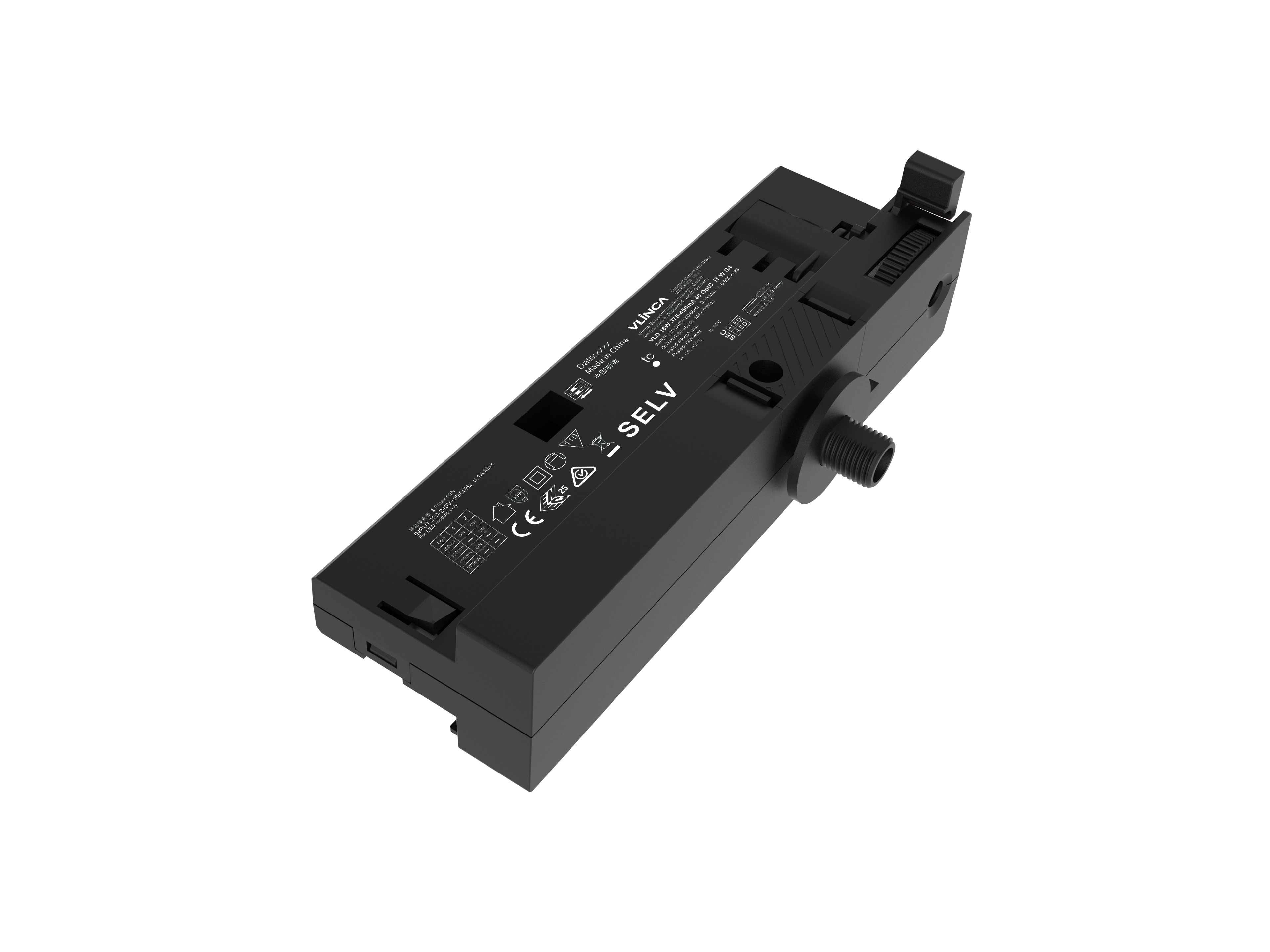

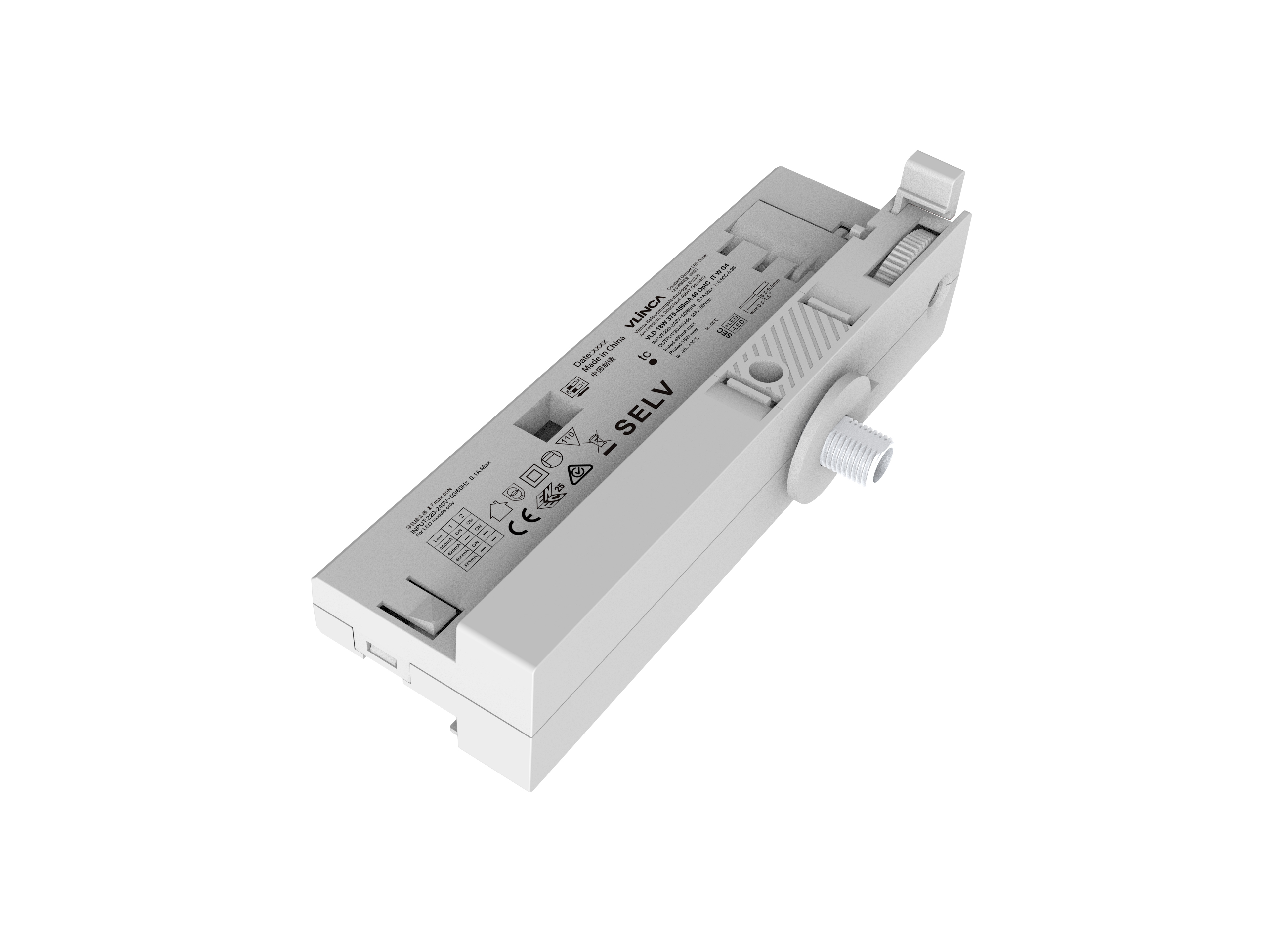

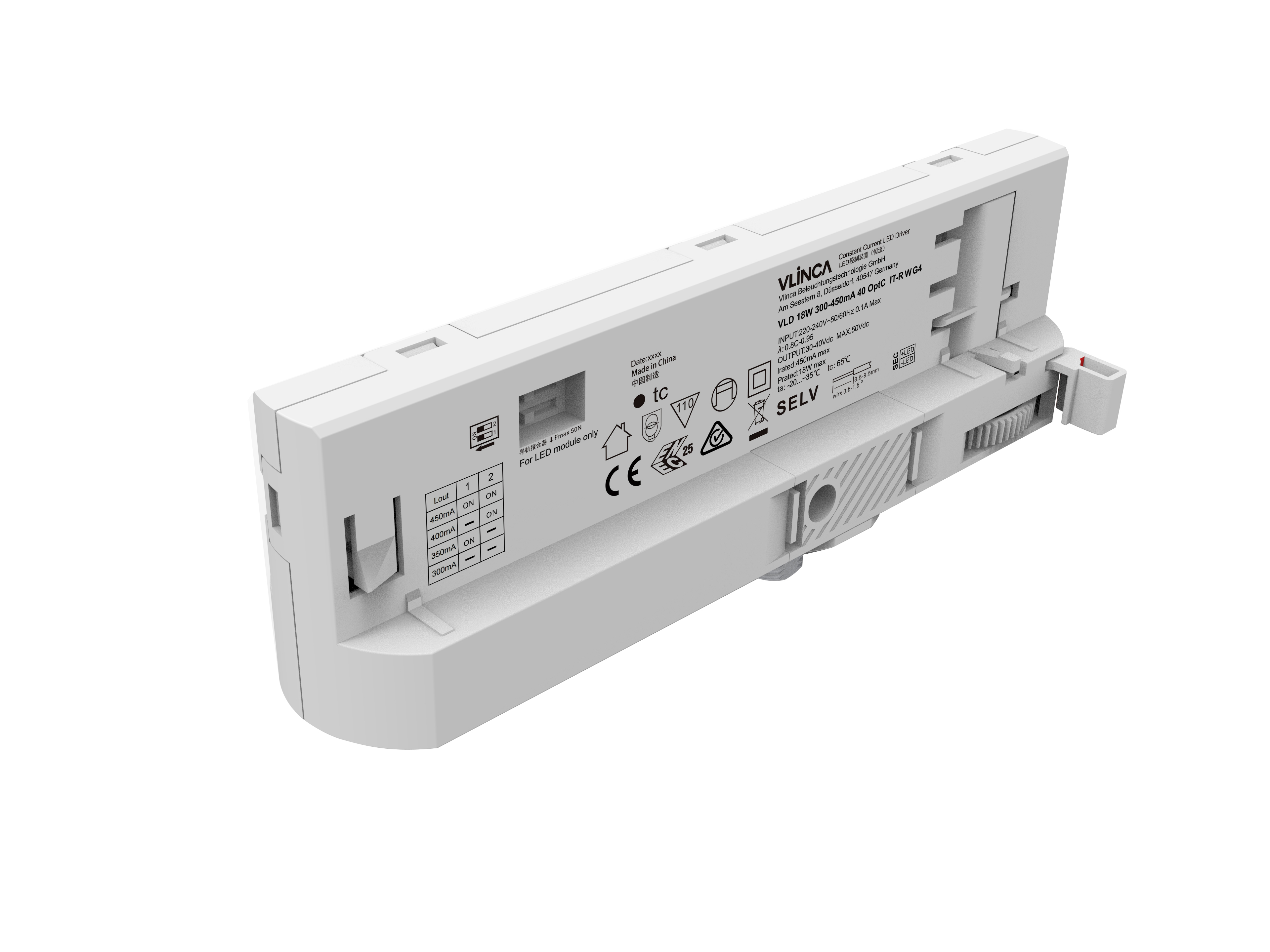

4L In-track LED Driver
Description
Product Description
• Constant current /in-track LED driver
• Fixed output current
• For luminaires of protection class ll
• Selectable fixed output current via DlP switch 450, 400, 350 and 300mA
• For ambient temperatures up to 35 C
• Optional accessory ACU ALU NIPPLE M10*1 for mounting the luminaire head
Advantage
• Compact dimension that is beneficial to the miniaturization desigrof track luminaires
• Up to 93% efficiency
• Life-time up to 50,000 hours
• 5-year guarantee
Features and Benefits
Functions
• Casing:polycarbonate, white (RAL9016), black (RAL9005)
• Type of protection lP20
Features
• Overload protection
• Short-circuit protection
• No-load protection
• Burst protection voltage 1 kV
• Surge protection 1 kV(L to N)
Technical parameter
| Type | Input Voltage | Output Power | Output Voltage | Output Current | Ripple | Tc | Ta | Dimension |
VLD 18W 300-450mA 40 OptC IT-R G4 | 220-240Vac | Max.18W | 30-40V | 450/400/350/300mA | <5% | 65℃ | -20...+35℃ | 143*30.9*43mm |
| VLD 30W 600-750mA 40 OptC IT-R G4 | 220-240Vac | Max.30W | 30-40V | 750/700/650/600mA | <5% | 75℃ | -20...+35℃ | 143*30.9*43mm |
| VLD 11W 200-275mA 40 OptC IT-R G4 | 220-240Vac | Max.11W | 30-40V | 275/250/225/200mA | <5% | 65℃ | -20...+35℃ | 143*30.9*43mm |
